Description

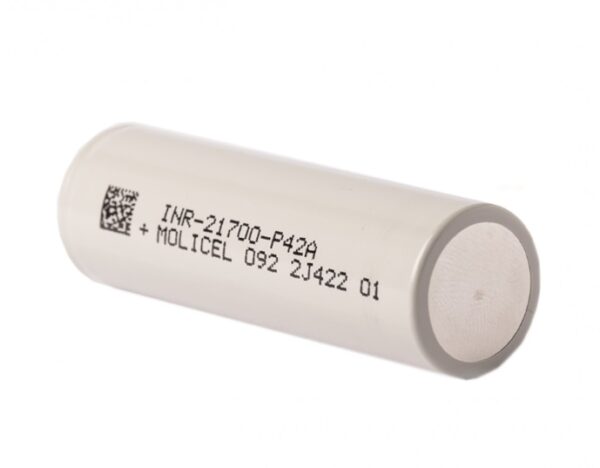

Li-Ion 21700 format battery module Molicel INR21700-P42A. The lithium-ion battery module has a capacity of 4Ah (4000mAh), a maximum supply current of 45A when discharged, and a nominal voltage of 3.6VDC (4.2V...2.5V). Very high maximum discharge current and charge current, medium capacity, very high quality 21700 battery module.
Other specifications:
Weight: 66.5g
66.5g / 66.5m Rechargeable / Non-rechargeable: Rechargeable
Charging Temperature: 0C to 60C 66.5g / no charge
Charging temperature: -40C to 60C Charging temperature: -40C to 60C
Storage Temperature: -40C to 60C
Battery version: flat top
Current circuit protection: without fuse
Length: 70mm
Diameter: 21.40mm
Charging voltage: 4.20V ± 0.05V
Maximum charge current: 4.2A (1.05C)
NOTE: Never charge the battery module to less than 2.5V. A battery module that has dropped below this voltage must be replaced and the old module disposed of - charging / recharging the module below 2.5V is dangerous. Lithium-ion batteries can be dangerous if used incorrectly. Incorrect use can result in fire or explosion due to short circuiting.
Do not charge the battery with the wrong poles. Never short-circuit the battery, or put the battery pack in your pocket with keys or other metal objects.
Do not disassemble the battery. If the Li-Ion battery module is deformed, it should be disposed of. Do not immerse the battery in water and do not allow the module to come into contact with liquids.
Avoid use in environments with very high physical vibration and/or shock. Do not throw the battery module into a fire.
Keep the battery module out of the reach of children. Do not use a modified or damaged charger when charging and check the charging voltage before using the charger.
Do not leave the battery module in the charger for more than 12 hours. Store the module in a cool, dry and well-ventilated environment. When disposing of the battery module, comply with local regulations.
When assembling a battery from modules, do not use soldering to connect the modules, but use spot welding - soldering onto the module will cause heat damage to the modules.
You can read more about the safety of Li-ion batteries on our blog.
